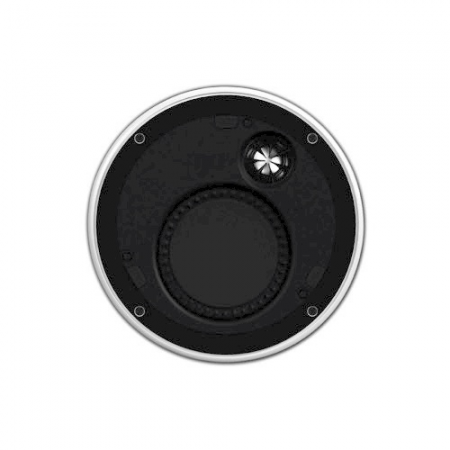

KEF CI160TR 1.4" Reduced Depth In-Ceiling Ultra Thin Bezel – (Each)
Return policy
| Specifications for:KF-CI160TR: KEF 1.4" Reduced Depth In-Ceiling Ultra Thin Bezel – (Each) | |
|---|---|
| Model | Ci160TR |
| Series | T Series |
| Nominal impedance | 8 Ω |
| Sensitivity (2.83V/1m) | 87dB |
| Frequency response (±6dB) open-backed | 110Hz - 24kHz |
| Frequency range (-10dB) | 69Hz - 45kHz |
| Nominal coverage | 160° |
| Max SPL | 101dB |
| Crossover frequency | 1.7kHz |
| Drive units | LF: 115mm (4.5in.) dual layer MF: - 25mm (1in.) |
| Recommended amplifier power | 10 - 100W |
| Recommended high-pass filter | 70Hz |
| Product external dimensions (H x W x D) | Not Applicable |
| Product external dimensions (Diameter ⌀ x Depth) | 234.6mm (9.24in.) x 40mm (1.57in.) |
| Cut-out dimensions (H x W) | Not Applicable |
| Cut-out dimensions (Diameter ⌀) | 196mm (7.71in.) |
| Net Weight | 1kg (2.2lbs) |
| Mounting depth from surface | <36mm (1.42in.) |
| Optional rough in frame | RIF160R |
| Optional rear enclosure | RNC160R |
| Ideal rear volume | 3L |
| Minimum rear volume | 1L |
| Certification | IP64 |
