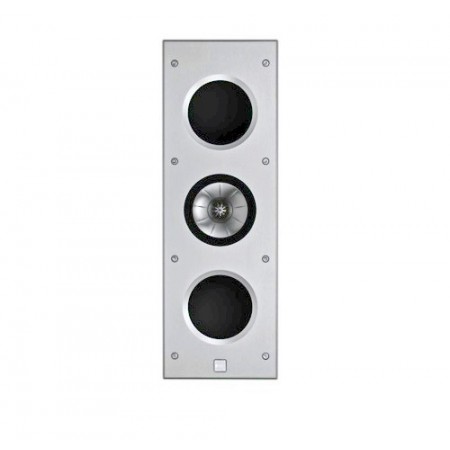

KEF CI3160RL-THX Extreme HT/THX Ultra2 In-Wall 3Way UniQ 3 Drivers – (Each)
KEF Extreme HT/THX Ultra2 In-Wall 3Way UniQ 3 Drivers – (Each)
Model: CI3160RL-THX
Return policy
| Specifications for:KF-CI3160RL-THX: KEF Extreme HT/THX Ultra2 In-Wall 3Way UniQ 3 Drivers – (Each) | |
|---|---|
| Model | Ci3160TL-THX |
| Series | R Series |
| Nominal impedance | 4 Ω |
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response (±6dB) open-backed | 45Hz - 28kHz |
| Frequency range (-10dB) | Not Provided |
| Nominal coverage | Not Provided |
| Max SPL | Not Provided |
| Crossover frequency | 340Hz, 2.5kHz |
| Drive units | LF: 2 x 160mm (6.5in.) MF: 160mm (6.5in.) HF: 25mm (1in.) Uni-Q |
| Required amplifier | - |
| Recommended amplifier power | 30 - 180W |
| Recommended high-pass filter | - |
| Recommended low-pass filter | - |
| Product external dimensions (H x W x D) | 680 x 230 x 105.7 mm (26.77 x 9.06 x 4.16 in.) |
| Product external dimensions (Diameter ⌀ x Depth) | Not Applicable |
| Cut-out dimensions (H x W) | 660 x 209 mm (25.98 x 8.23 in.) |
| Cut-out dimensions (Diameter ⌀) | Not Applicable |
| Net Weight | 11.7kg (25.79lbs.) |
| Mounting depth from surface | 99mm (3.9in.) |
| Optional rough in frame | RIF3160L |
| Optional rear enclosure | Not Provided |
| Ideal rear volume | Not Provided |
| Minimum rear volume | Not Provided |
| Certification | THX |
