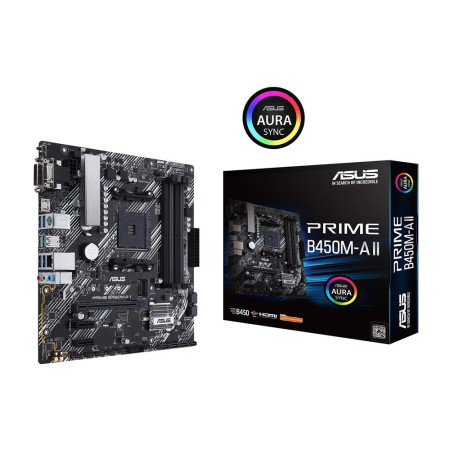

ASUS Prime B450M-A II Socket AM4 - 128 DDR4 Max. RAM - PCIe 3.0 x16, M.2 - USB 3.2 Gen 1, HDMI, DP, mATX Motherboard
ASUS Prime B450M-A II Socket AM4 - 128 DDR4 Max. RAM - PCIe 3.0 x16, M.2 - USB 3.2 Gen 1, HDMI, DP, mATX Motherboard
Return policy
General Information
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B450M-A II |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | B450M-A II |
| Product Name | Prime B450M-A II Desktop Motherboard |
| Product Type | Desktop Motherboard |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Model | B450 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3 PRO Ryzen 5 Pro Ryzen 7 PRO Ryzen 3 Ryzen 5 Ryzen 7 Ryzen 9 Athlon |
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4400 MHz 4000 MHz 3866 MHz 3733 MHz 3600 MHz 3466 MHz 3400 MHz 3300 MHz 3200 MHz 3000 MHz 2800 MHz 2666 MHz 2400 MHz 2133 MHz |
| Memory Technology | DDR4 SDRAM |
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 1 |
Video
| Onboard Video | CPU Dependent Video |
Audio
| Audio Channels | 7.1 |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Number of Total Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
Interfaces/Ports
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.2 Ports | 2 |
| Onboard S/PDIF Header | Yes |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.50" (241.30 mm) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
Warranty
| Limited Warranty | 3 Year |
