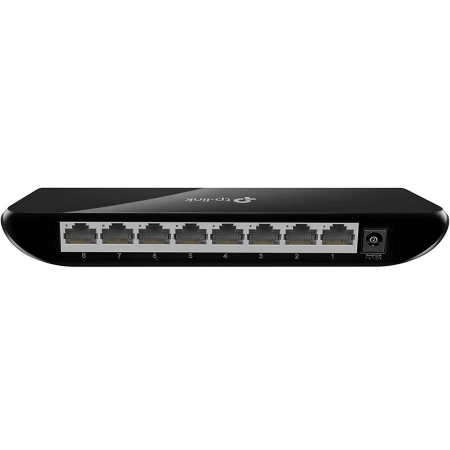

The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.
Key Features
| Power Device: |
Power Adapter - External |
| MAC Address Table Size: |
4K |
| Device Type: |
Desktop Switch |
| Manufacturer Warranty: |
2 years warranty |
| Compliant Standards: |
IEEE 802.3, 802.3u, 802.3x, 802.3ab |
| Data Link Protocol: |
CSMA/CD, TCP/IP |
| Status Indicators: |
Power, 10/100M, 1000M |
Detail Specifications
| |
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode |
| |
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput |
| |
Supports MAC address auto-learning and auto-aging |
| |
LED indicators for monitoring power, link, activity |
| |
Plastic case, desktop or wall-mounting design |
| |
External power adapter supply |
| |
Standards and Protocols :
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP |
| |
Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
| |
Backbound Bandwidth : 16Gbps |
| |
Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port |
| |
Transmission Method : Store-and-Forward |
| |
Ports : 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
| |
Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| |
LED Indicators : Power, 10/100M, 1000M |
| |
Safety and Emission : FCC, CE |
| |
Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing |
| |
Power : External Power Adapter |
| |
Dimensions (WxDxH) : 7.9 x 5.5 x 1.1 in. (200 x 140 x 28 mm) |
| |
Packing Dimension LxWxH :11 x 4 x 8 inch |
