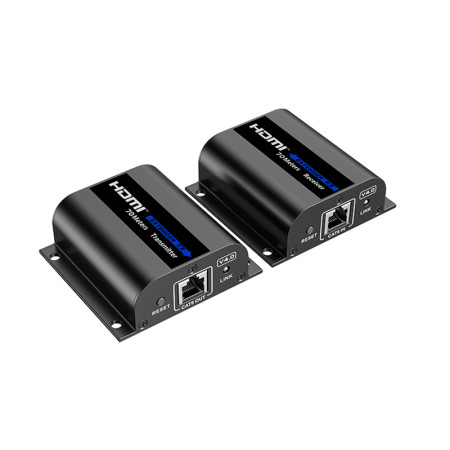

LKV372AE-4.0 HDMI & IR Extender over Single Cat6/6A/7, 1080P@60Hz 70 mater with IR, Zero delay Transmitter & Receiver Kit

The LKV372AE-4.0 Extender  is a twisted-pair HDMI transmitter and receiver kit that provides stable 1080p video transmission up to 70 meters. The video signal is transmitted with zero latency and without compression.The LKV372AE-4.0 kit supports IR signal return to control the image source (TV tuner, satellite receiver, player etc.

Features

• Uncompressed signal and zero delay
• 1080P@60Hz for 70m
• Support one way IR
• Strong static, surge,lightning protection
• One to one connection
• HDMI signal transmission over twisted pair CAT6/6a/7 (don't support Cat5)
• Transmits HDMI signal up to 70 meters using CAT6 twisted pair cable
• Maximum supported video resolution - up to 1080p @ 60 Hz
• IR feedback support for remote control of image source
• "Ears" on the body for easy mounting to surfaces
• Zero video latency
• Lightning protection, surge protection, ESD protection
• Ideal for home use, conference rooms, broadcasts, exhibitions, video surveillance, and more.
• HDMI interface
• Video signal standard: HDMI 1.3, HDCP 1.4
• HDR:Supported
• EDID through:Supported
• Audio formats:DTS, DTS-HD, PCM, LPCM
• Resolution: 800x600, 1024x768, 1280x720,1280x960,1366x768,1440x900,1680x1050,1920x1080 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
• 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• IR interface:IR control
• IR passback with a frequency of 20-60 kHz
• Transmission distance Range:cat6: 15–70 m,cat6a: 15–70 m,cat7: 15–70 m
• Environment parameters: Working temperature: 0..60 ° C
• Dimensions:(W × D × H)mm: Transmitter: 71.60 × 66.60 × 24.80, Receiver: 71.60 x 66.60 x 24.80
• Colour:Black
• Weight: Transmitter: 85g, Receiver: 85g

Package Includes:

1x HDMI transmitter
1x HDMI receiver
2x Power supply 5V/1A
1x IR emitter
1x IR receiver
1x Instruction
