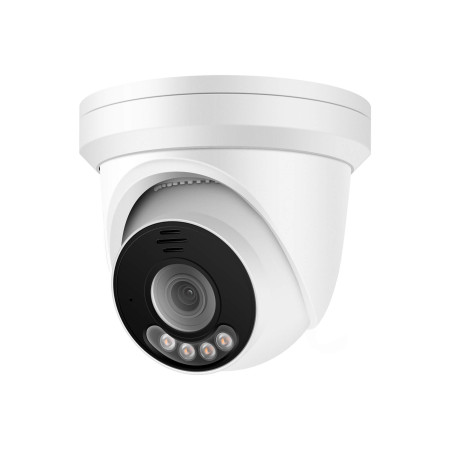

RS-W7312GCB99BA 12MP IMX577 CMOS Sensor 40M IR Distance Two Way Audio Turret IP Camera

RS-W7312GCB99BA 12MP IMX577 CMOS Sensor 40M IR Distance Two Way Audio Turret IP Camera

Return policy

1/2.3" Sony IMX577 CMOS sensor

12MP resolution 4000 x 3000P

Low illumination 0.01Lux

Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT

D-WDR, Mirror, Defogging

Multiply Style OSD Overlay,Motion Detection, Privacy Mask

RTSP and Onvif 17.06 compatible with many third-party NVR

H.264/H.265 dual-stream media server

Easy-to-use P2P Cloud service

Support user authentication, video data encryption

Support Alarm Snapshot to Email and FTP

Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access

RJ45 100mbps network port, IEEE802.3af PoE

Lightning protection 4000V

Strong water-proof housing, IP67

4PCS dual light LEDs, IR distance:30-40M

4 mm fixed lens

Built-in Microphone and speaker, two way audio, with SD card slot

Human body and Vehicle detection

Model RS-W7312AHBB99BA
Camera
Image Sensor 1/2.3" Sony IMX577 CMOS
Effective Pixels 12 megapixels
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
BLC /HLC Support
DNR 2D/3D DNR
Light Control Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination
License Plate Mode Yes
Other Multi-lines OSD, Custom Title, Privacy Mask, Flip
Encode
Video Standard H.265+/H.265/H.264
Video Resolution MainStream:25/30fps@12MP(4000x3000)/8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.
Video Bitrates 512Kbps - 12Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a/AAC
Built-in Mic Yes, Audio Echo Cancellation
Built-in Speaker Yes, Two-way audio
Memory Slot Yes, maximum 512GB
OSD Overlay Title and Time overlay, Snapshot
Smart Detection
Motion Detection Support
Target Detection Human and Vehicle Detection
LED and distance
Led 4pcs IR&Warm-light dual-wick Led
IR Distance 30-40 M
Lens
Focal length 4 mm Fixed lens
Language
English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian.
Network Services
Protocol HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
P2P Yes
Web IE , Firefox (32bit esr),Chrome ,Edge ,etc.
Media CMS, Android, IOS
ONVIF 17.06 compatible
General
Network Port 1-RJ45, 100Mbps
Power Supply 12 VDC ± 10%
POE 802.3af/at 48V
Power Consumption < 10 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH

721820986878
