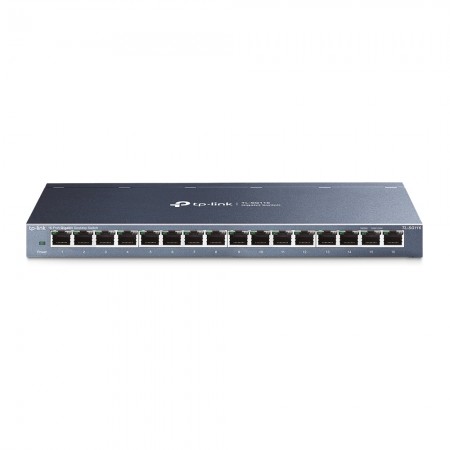

TL-SG116 16-Port Gigabit Desktop Switch
Return policy
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
- Interface: 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- Fan Quantity: Fanless
- Physical Security Lock: Yes
- Power Consumption: Maximum: 10.0W
- External Power Supply: External Power Adapter (Output: 12VDC / 1.0A)
- LED Indicator: System Power; Link/Act indicators per port built into each RJ-45 port
- Dimensions ( W x D x H ): 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
- Max Power Consumption: 10W(220V/50Hz)
- Max Heat Dissipation: 34.12BTU/h
PERFORMANCE
- Packet Forwarding Rate: 23.8Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mb
- Jumbo Frame: 10KB
SOFTWARE FEATURES
- Advanced Features: Green Technology; 802.3X Flow Control; 802.1p/DSCP QoS; IGMP Snooping
- Transfer Method: Store and Forward
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90%, non-condensing
- Storage Humidity: 5%~90% non-condensing
OTHERS
- Certification: CE, FCC ,RoHS
- Package Contents: 16-Port 10/100/1000Mbps Desktop Switch; Power Adapter; Installation Guide; Rubber Feet
Returns Policy
- It must be unassembled and still in the original packaging
- Return shipping costs will be paid by the seller for all cases where the product is defective, damaged, or incorrect
- For other cases (e.g. you changed your mind), you will be responsible for this cost
