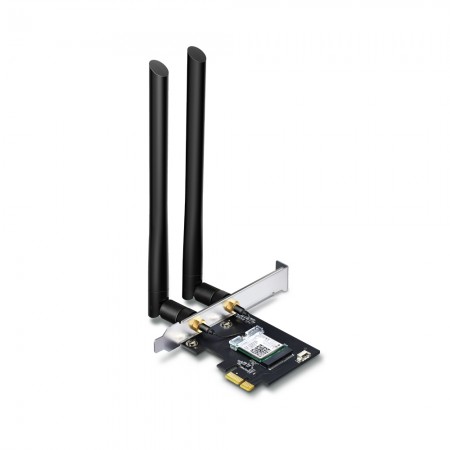

TP-LINK AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter Archer T5E

HARDWARE FEATURES

• Interface: PCI Express
• Dimensions: 4.8 × 3.3 × 0.85 in (120.8 × 83.2 × 21.5 mm)
• Antenna: 2 Detachable External Antennas
• Bluetooth Features: Bluetooth 4.2, Bluetooth 4.0
• Interface: USB 2.0

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz

Signal Rate

• 11ac: Up to 867 Mbps(dynamic)
• 11n: Up to 300 Mbps(dynamic)
• 11a: Up to 54 Mbps(dynamic)
• 2.4 GHz:
• 11n: Up to 300 Mbps(dynamic)
• 11g: Up to 54 Mbps(dynamic)
• 11b: Up to 11 Mbps(dynamic)

Reception Sensitivity 5 GHz

• 11ac HT80: -59.0dBm
• 11n HT40: -68.5dBm
• 11a 54Mbps: -73.5dBm
• 11a 6Mbps: -91dBm
• 2.4 GHz:
• 11n HT40: -69.5dBm
• 11g 54Mbps: -74dBm
• 11b 11Mbps: -87dBm

• Transmit Power: 5 GHz: 21.5dBm(FCC) / 23dBm(CE) (EIRP); 2.4 GHz : 20.5dBm(FCC) / 20dBm(CE) (EIRP)
• Wireless Modes: Infrastructure mode
• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

• Certification: FCC, CE, RoHS
• Package Contents: AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter Archer T5E; Low-Profile and Full Height Brackets; Quick Installation Guide ;Bluetooth USB Cable;
• Resource CD
• System Requirements: Windows 10/8.1/8/7 (32/64 bit)

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
